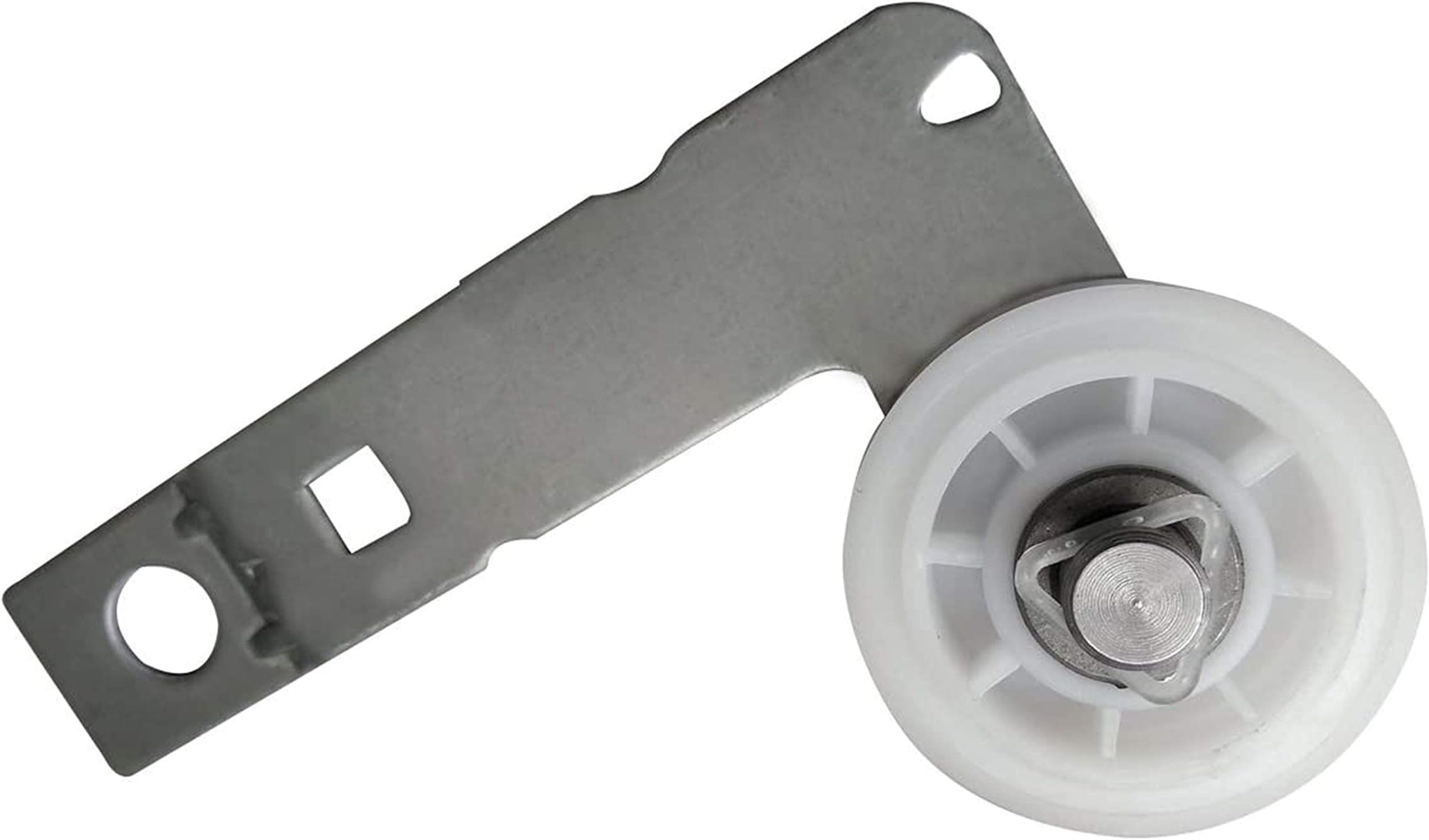

LONYE W10837240 Dryer Idler Pulley with Bracket Replacement for Whirlpool Maytag Dryer 279640 W10118756 W10547290 AP5988716 PS11726337

Description

Product description W10837240 Dryer Idler Pulley includes the pulley wheel (Part Number 279640) thrust washer (Part Number 233520) tri ring (Part Number W10512946) Idler pulley W10837240 maintains correct tension on the drive belt to spin the drum. W10837240 replaces: 3387372, 3388674, PS11726337, AP5988716, W10118754, W10118756, W10547287, W10547290, W10837240VP. Dryer Idler Pulley W10837240 works with the following models 3LWED4800YQ0 3LWED4800YQ1 3LWED4800YQ2 3LWED5500YW1 3LWED5500YW2 3LWGD4800YQ0 3LWGD4800YQ2 3LWGD4800YQ3 Works with most top name brands: Whirlpool, Maytag, KitchenAid, Amana, Inglis, Crosley, Admiral. Works with the following products: D ryer, Washer Dryer Combo This part fixes the following symptoms Squeaking noise Dryer wouldn't run Dryer drum was not spinning Idler wheel is not spinning How to replace W10837240 Dryer Idler Pulley step 1 Break the circuit step 2 Take off the top on the back with three quarter inch screws , remove the rear across panel step 3 Remove the grounding wire with 5/16 inch nut driver, take the power cord together. step 4 Take the exhaust duct to take off the access panel spring retainer, remove the quarter inch screws around. step 5 Take the cement block out of the way, release the tension on belt to slide off the motor pulley, and take 3/8 inch socket to take off the bolt and the idler pulley. step 6 Lift up the spring, reattach the new W10837240 pulley to the bracket, take the bracket between the motor pulley and the broken belt switch, line up the holes to put the bolt in. step 7 Put the belt back, and Reinstall the panel.
